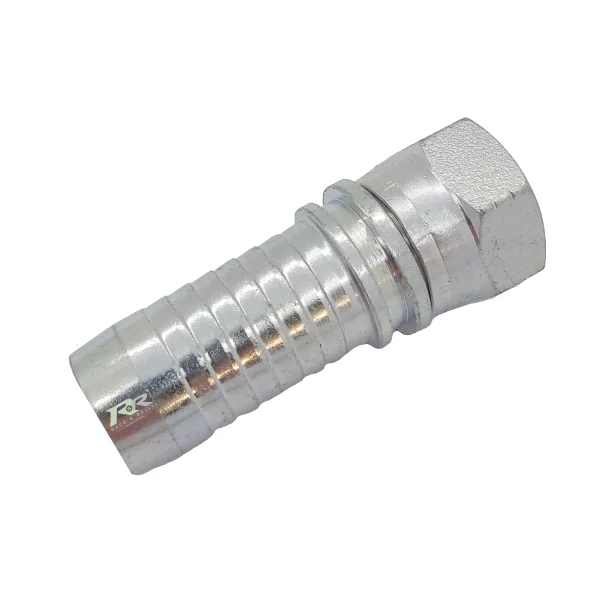

-12 Female to 1" Male Push-on Swivel Fitting
HomeStore

-12 Female to 1" Male Push-on Swivel Fitting

-12 Female to 1" Male Push-on Swivel Fitting

$5.81

Original: $19.37

-70%
-12 Female to 1" Male Push-on Swivel Fitting—

$19.37

$5.81

The Story

This swivel fitting is primarily combined with the Staubli SPT12 Socket in order to attach a hydraulic hose by push fit for Refuelling purposes.

Technical Specifications:

  • Female Threads: 1 1/16 x 24 JIC/UNF (Convex Seat)
  • Swivel Socket: 1.25" HEX
  • Push-on OD: 1" // 25mm
  • Push-on ID: 0.75" // 19mm
  • Push-on Lentgh: 1.8" // 47mm
  • Groove for Circlip

Staubli socket and fuel pipe supplied separately

-12 Female to 1" Male Push-on Swivel Fitting - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

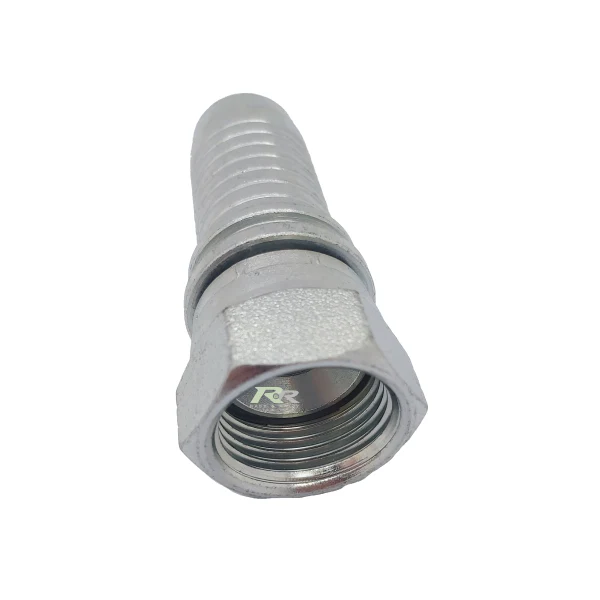

-12 Female to 1" Male Push-on Swivel Fitting - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

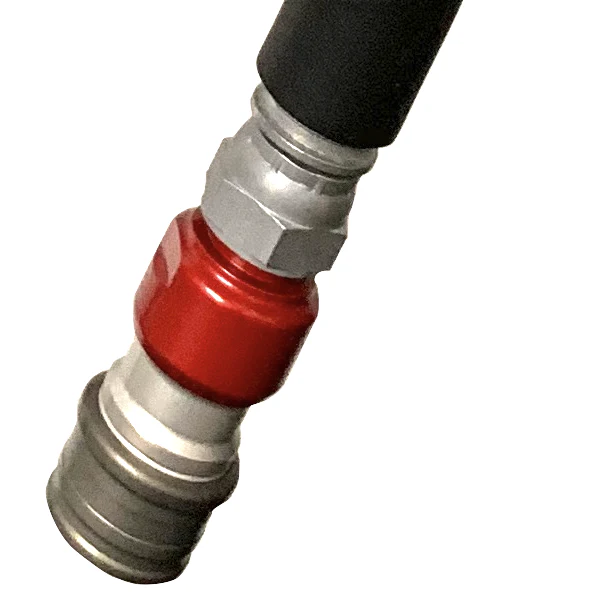

-12 Female to 1" Male Push-on Swivel Fitting - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This swivel fitting is primarily combined with the Staubli SPT12 Socket in order to attach a hydraulic hose by push fit for Refuelling purposes.

Technical Specifications:

  • Female Threads: 1 1/16 x 24 JIC/UNF (Convex Seat)
  • Swivel Socket: 1.25" HEX
  • Push-on OD: 1" // 25mm
  • Push-on ID: 0.75" // 19mm
  • Push-on Lentgh: 1.8" // 47mm
  • Groove for Circlip

Staubli socket and fuel pipe supplied separately
