A lightweight double-ended hand brake master cylinder, designed for use with dual circuits where diagonal brake split is mandatory. CP6026 is mounted using rod-ended spherical bearings.

Features:

Double ended
For use with dual circuits where diagonal brake split is mandatory
Forged Aluminium Alloy Body
One-piece piston & push rod
Lightweight compact design
Hard anodised
High efficiency push-type design
Mounted using rod end sperical bearings
Rubber boots fitted as standard

TECHNICAL DETAILS

Weight: 0.25kg (0.55lbs)
Full stroke: 2 x 12mm
Bore diameter: 0.70" | 17.80mm
Travel to cut-off: 0.48 to 0.63mm (0.19" to 0.25")
Inlet hydraulic thread: M10 x 1.0
Outlet hydraulic thread: M10 x 1.0

Spare Parts:

Rod end: CP6026-101
Nut: ME21001 x 2 M6
Seal repair kit: CP6025-91RK

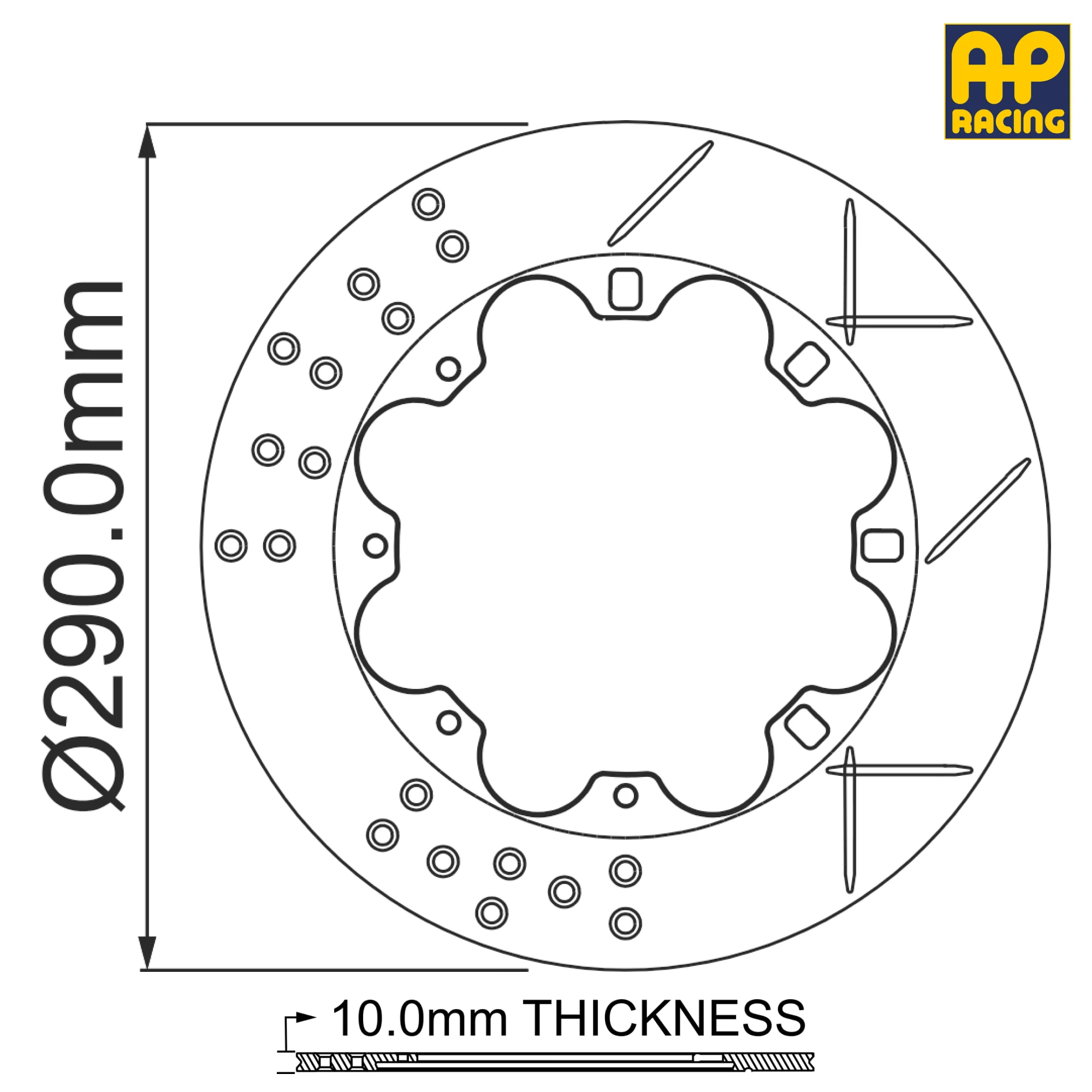

Ø290mm x 10.0mm Solid Brake Disc - 8 x 180.0mm PCD
