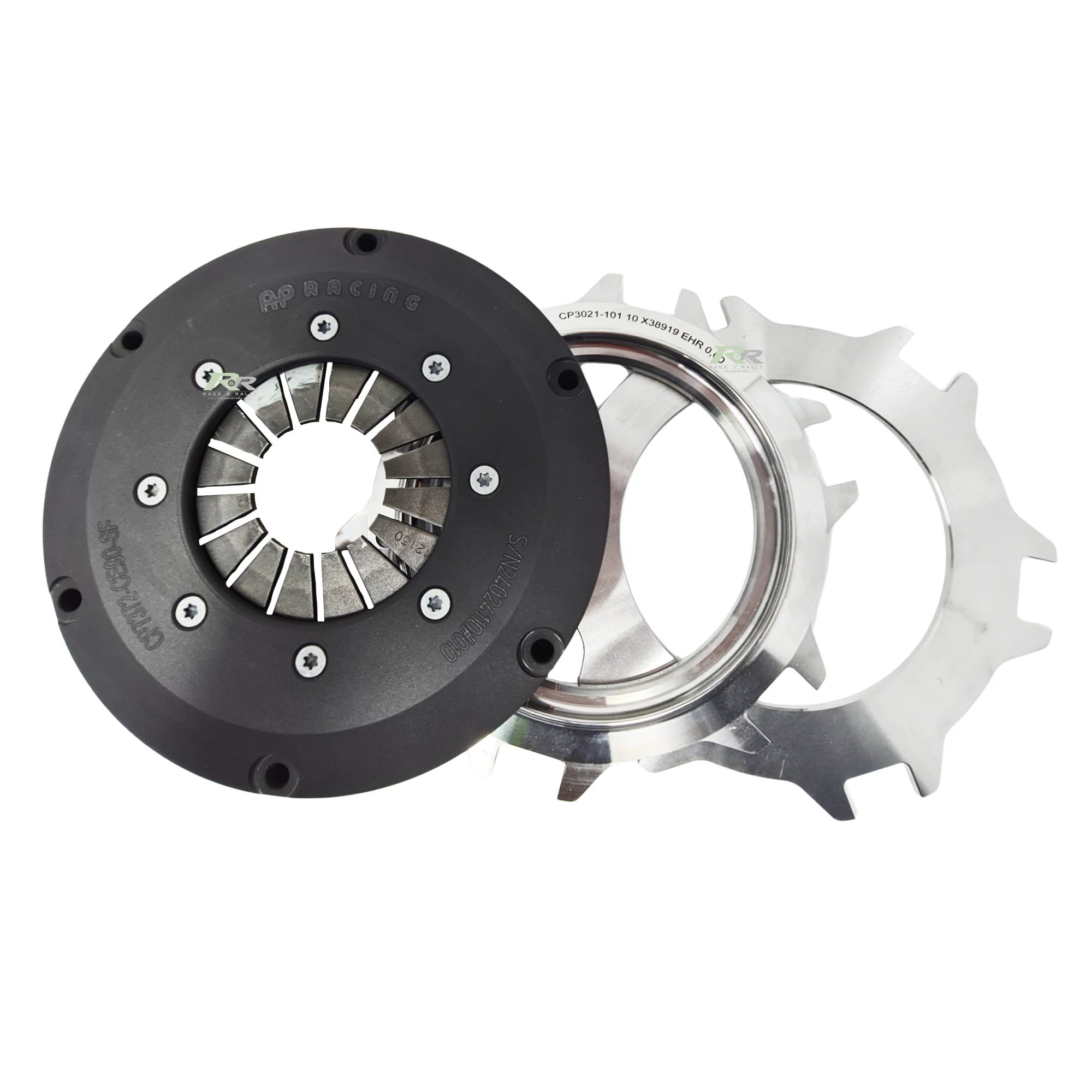

CP7372 - Ø184mm Twin Plate - Sintered Paddle Clutch

CP7372 - Ø184mm Twin Plate Sintered Paddle Clutch

Typical Applications:

• Race

Features:

• Push Type
• Stepped Flywheel Fixing
  • Inner diameter location.
• 6 bolt, one piece cover and lugs
  • machined from aluminium alloy. Allows dust and debris to escape.
• Choice of Three (3) driven plate options
  • For high torque applications use CP4429 sintered d/plate.
• Black hard anodised
• Stainless steel wear plates fitted
• Low wear rate
• Individually tested
  • match machined, balanced and clutch load recorded.
• Mounting studs available, CP4702.
  • Supercedes CP3912 clutch family.


Part Numbers:

• CP7372-CE90-SF
• CP7372-NE90-SF
• CP7372-OE90-SF

Technical Specifications:

Torque Capacity (Nm (lbs/ft)	CP7372-NE90-SF - 327 (241) CP7372-OE90-SF - 532 (392) CP7372-CE90-SF - 848 (625)
Release Load - Max Peak New - daN	CP7372-NE90-SF - 160 CP7372-OE90-SF - 240 CP7372-CE90-SF - 350
Release Load - Max Peak Worn - daN	CP7372-NE90-SF - 220 CP7372-OE90-SF - 330 CP7372-CE90-SF - 440
Set-up Height - New	CP7372-NE90-SF - 28.73 / 25.97mm CP7372-OE90-SF - 29.55 / 26.77mm CP7372-CE90-SF - 28.76 / 26.00mm
Set-up Height - Max Worn	CP7372-NE90-SF - 31.95mm CP7372-OE90-SF - 32.76mm CP7372-CE90-SF - 31.97mm
Clutch "Wear in"	0.75mm
Weight (Excluding Drive Plates)	2.75 Kg
Assembly Intertia (Excluding Drive Plates)	0.0177 Kgm2
Release Bearing	Outer race rotates: CP3457-2 or -10 Inner race rotates: CP3457-6
Drive Plate Options	New = 2.63mm (Nom.) Worn = 2.25mm (Min.)
	Back to back CP2012 Nested Type CP2567 Gear Driven Type CP3822 CP2822 Single Back to Back CP4429



Spare Parts:

Main Pressure Plate	CP3021-101
Intermediate Pressure Plate	CP3592-106
Wear Clips	CP3912-102 (x6)
