FIA Seat Mounting Kit - 35mm Bolt In

!!New Seat Installation Regulations for 2020!!

Universal Weld In Seat Rail Mounting / Subframe Kit - FIA and MSA / MSUK approved type.

Kit manufactured as per FIA drawings - please see attached documents.

Technical Specifications:

• Ø35mm Seamless tubes ready to be drilled to suit your seat mounts.
• Counter-plates supplied with pre-welded nuts.
• Welds to Inner Sills and Gearbox Tunnel.
• M8 threaded inserts
• Welds into tubes.
• End plates welds to tube ends; can be bolted or welded into position between counter plates.
• Meets FIA APPENDIX J ARTICLE 253/A16.2 and MSUK K2.2.2/DRAWING K64
• Kit supplied loose for DIY Assembly.

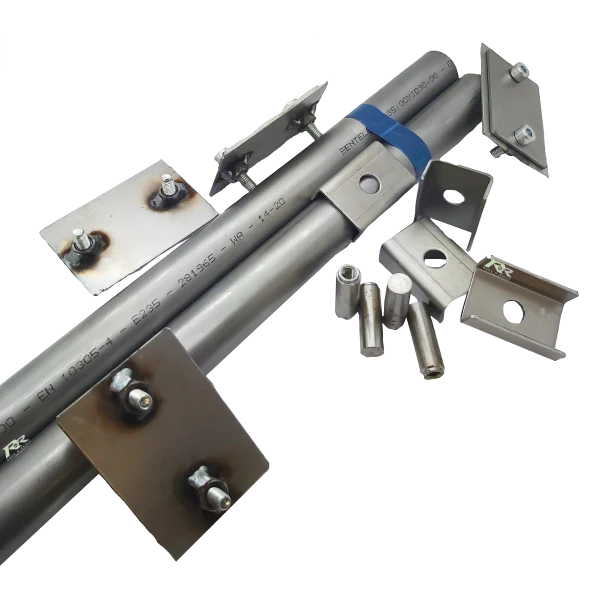

Included in the Kit:

• 2x 35mm Diameter x 600mm long CDS tubes.
• 4x Weld on tube saddles.
• 4x Weld on inner sill / tunnel plates with pre-welded nuts.
• 4x Tube End Plates.
• 4x M8 Threaded Inserts.

Optional Tools:

• GRP5094 - Drill JIG for Drilling Seat Mounts - 14mm

Motorsport UK - Seat Installation Guide

**Sold per Seat
