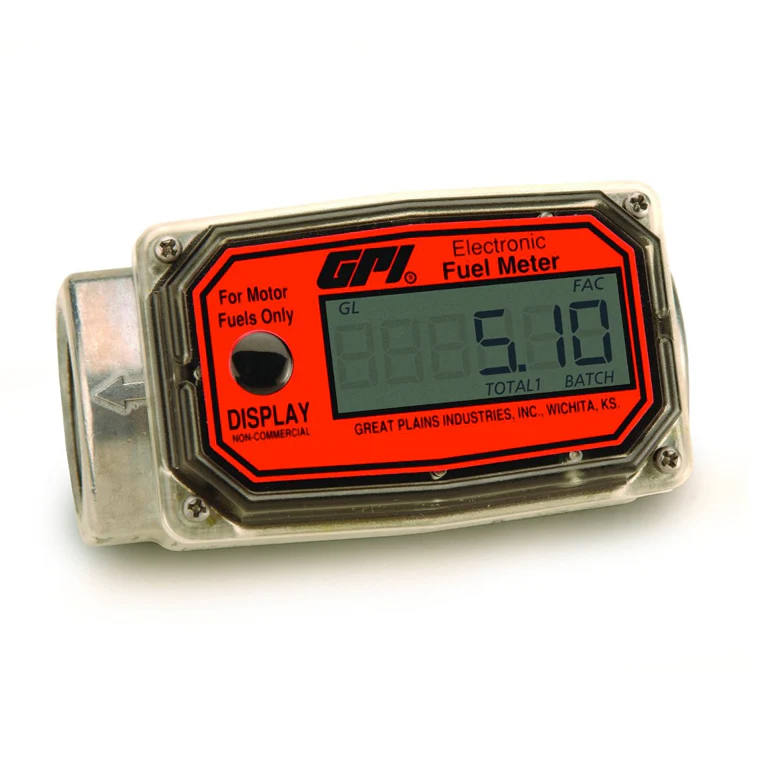

GPI Electronic Digital Fuel Meter

Accurate, Convenient, Reliable and Economical

GPI fuel totalising flowmeters are ideal for monitoring the use of petroleum based liquids. Its Aluminium body and battery powered LCD display make it robust and economic; with a length of only 102mm, installation in almost any system is simple.

Specifications

- Calibration: Factory set for gasoline, diesel or kerosene. Ready to install and use

- Flowrate: 10 to 100 LPM

- Measurment: Litres

- Accuracy: ±5.0%

- Pressure Rating: 21 bar (300 PSI)

- Display: LCD display with floating decimal point for easy viewing

- Operating Temperature: -10 to +54°C

- Powered By: Two replaceable AAA batteries

- Connections: 1" BSPP or NPT

- Approval: CE

Product Code 113255-12

Goodridge Adaptor:

1" x 11 BSP to -12 (1 1/16 x 12 JIC/UNF)

• 741-16-12P
