Magnetic Angle Sensor - Dual Channel

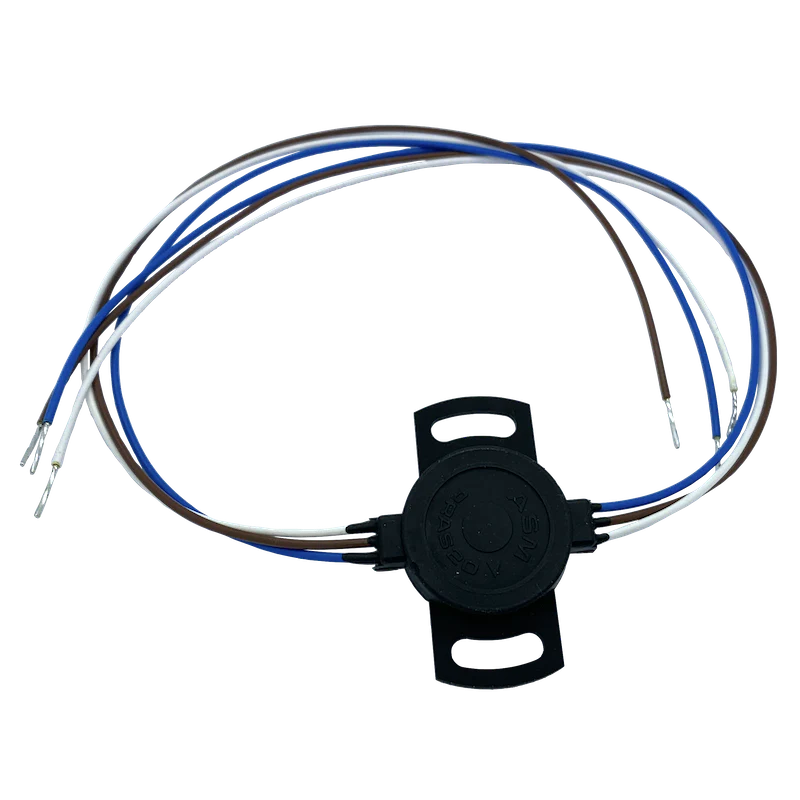

Barrel sensor - Dual channel

Sensor features

• Measurement range 0 ... 360° - in 15° increments

• Protection class IP60

• Analog output, redundant

• Compact, low profile housing

• Non-contact with external position magnet, no wear

• Redundant second channel

Specification

Analog Output

Signal Diagram

Dimensions

• A - Position magnet
• B - Measuring area
• C - Marking

Dimensions in mm [inch]. Weight without cable approx. 8 g.
