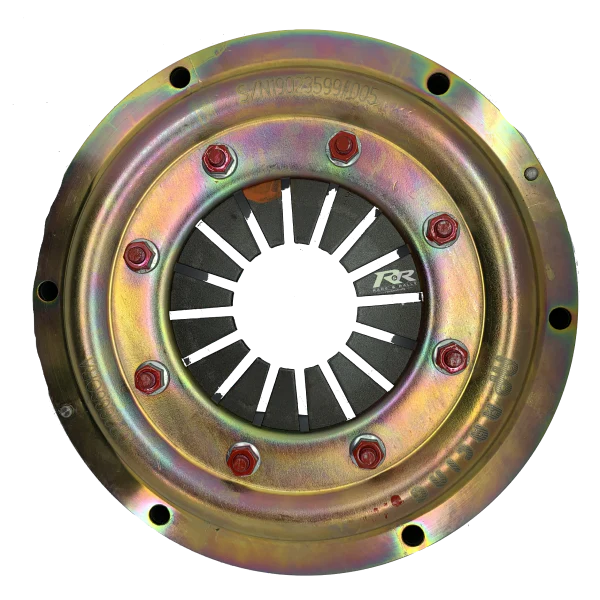

CP2606 - Ø184mm Twin Plate - A-Ring Cerametallic Paddle Clutch

Applications:

• Race
• Rally
• MK2 Ford Escorts
• Engine Speeds of 1400rpm

Features

• Twin Plate
• Push Type
• Adaptor ring clutch (A-Ring)
• Stepped flywheel fixing
• Inner diameter location
• 6 bolt cover
• Steel or Aluminium Alloy options available
• CP4702 mounting studs available
• Normal duty
• Durable
• Low wear rate
• Individually tested
• Match machined, balanced and clutch load recorded
• Organic Driven Plate option available - CP5386 Family

Part Numbers

• Aluminium Alloy Cover
• CP2606ACRV
• CP2606AORA
• CP2606AGRN
• Steel Cover
• CP2606CRV
• CP2606GRN
• CP2606ORA

Bonded - Driven Plates

• Thickness
• 7.08mm New
• 6.68mm Worn
• CP8300-A036H x2 - 3 Paddle - 1.00" x 23 Spline
• CP8400-A036H x2 - 4 Paddle - 1.00" x 23 Spline
• CP8600-A036H x2 - 6 Paddle - 1.00" x 23 Spline
• CP5386-10 x2 - Organic Faced - 1.00" x 23 Spline

Riveted - Driven Plates

• Thickness
• 7.08mm New
• 6.68mm Worn
• CP2606-17 x2 - 3 Paddle - 1.00" x 23 Spline
• CP3219-1 x2 - 4 Paddle - 1.00" x 23 Spline
• CP4946-20SEAT x2 - 6 Paddle - 1.00" x 23 Spline

Recommended Release Bearing:

• Outer Race Rotates:
• CP3457-2
• CP3457-10
• Inner Race Rotates:
• CP3457-6

Spare Parts:

• CP2606-125 - A-Ring Assembly

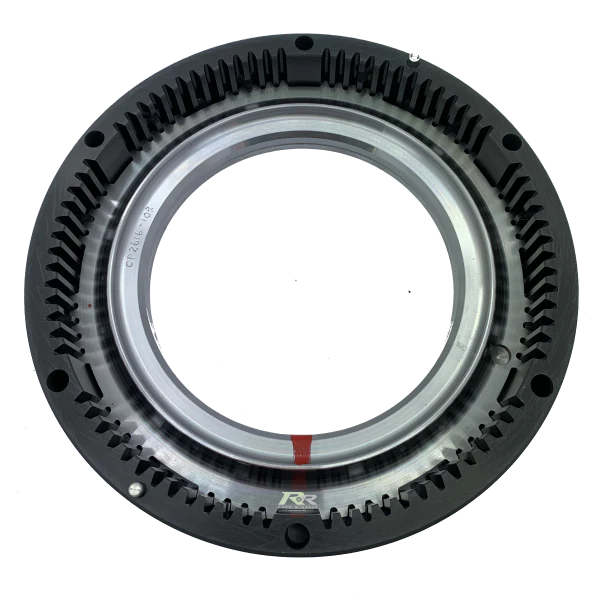

• CP2616-103 - Main Pressure Plate
• CP2613-103 - Intermediate Pressure Plate

CP2606 - Installation Drawing
