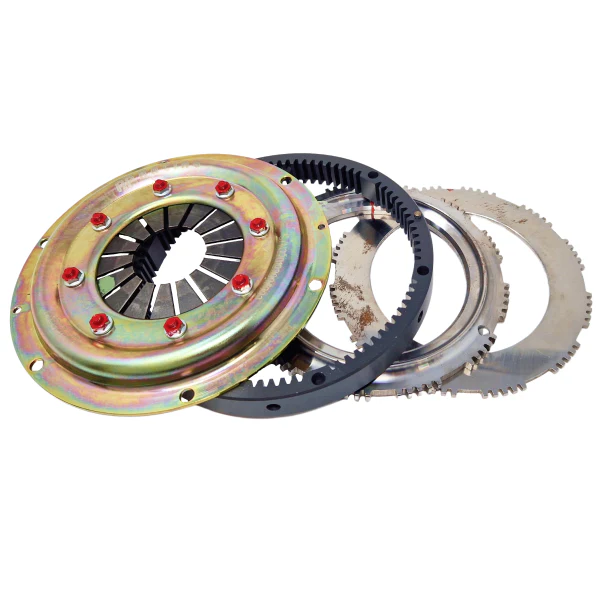

CP2125

Applications:

• Race
• Suitable for engine speeds of 14000 rpm

Features

• Twin Plate
• Push Type
• Adaptor ring clutch (A-Ring)
• Stepped flywheel fixing
• Inner diameter location
• 6 bolt cover
• Steel or Aluminium Alloy options are available
• CP4702 mounting studs available
• Normal duty
• Durable
• Individually tested
• Match machined, balanced and clutch load recorded

Part Numbers

• Aluminium Alloy Cover
• CP2125ACRV
• CP2125AORA
• CP2125AGRN
• Steel Cover
• CP2125CRV
• CP2125ORA
• CP2125GRN

Bonded - Driven Plates

• Thickness
• 2.63mm New
• 2.25mm Worn
• Back to Back
• CP2012-165FM3 x2 - 1.00" x 23 Spline
• Nested
• Offset: CP2567-7FM3 x1 - 7/8" x 20 Spline
• Flywheel: CP2567-8FM3 x1 - 7/8" x 20 Spline
• Gear Driven
• CP3822-10FM3 x1 - 1.00" x 23 Spline
• CP2822-31FM3 x1 slider plate

Recommended Release Bearing:

• Outer Race Rotates:
• CP3457-2
• CP3457-10
• Inner Race Rotates:
• CP3457-6

Spare Parts:

• CP2012-162 - A-Ring Assembly
• CP2616-103 - Main Pressure Plate
• CP2613-103 - Intermediate Pressure Plate
