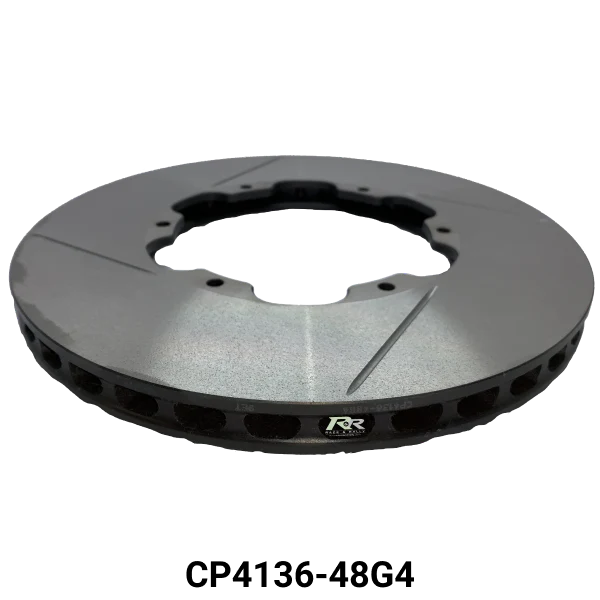

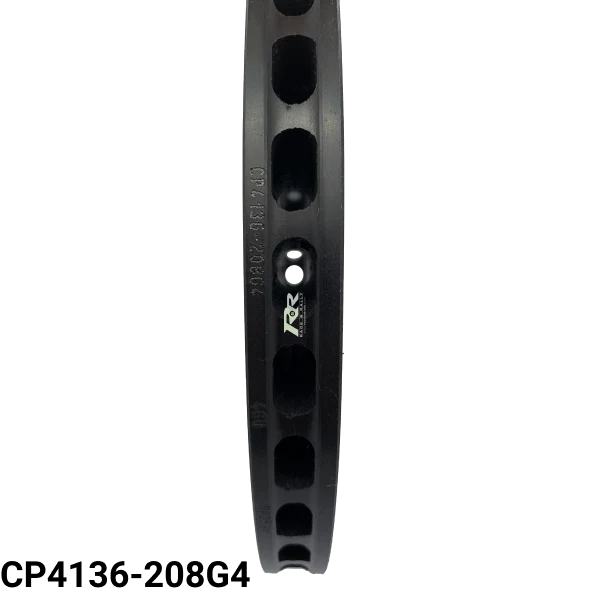

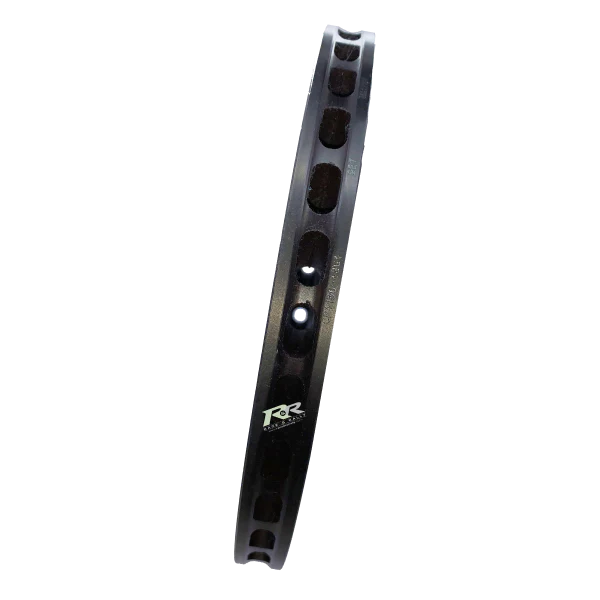

-70%Ø267 x 21mm Ventilated Brake Disc—
$334.55
$100.36The Story
APPLICATIONS
- Ford Escort MK2 - 15" Rear
TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)
- 'A' Outside Diameter: 267mm
- 'B' Thickness: 21.0mm
- 'M' P.C.D.: 139.7mm
- Fixing Type: Bolted
- 6 Bolts
- Ø6.40mm Mouting Holes
- 'C' Eye Diameter: 154.9mm
- 'D' Inside Flange Diameter: 125.8mm
- 'H' Mounting Flange Thickness: 5.6mm
- Max Pad Depth: D51
-
Number of Vanes: 36
- Air Gap: 9.3mm
- Face Types Available:
- G4 | 4-Straight Forward Facing Grooves
INSTALLATION DRAWING
PART NUMBERS
G4 | 4-Straight Forward Facing Grooves
- CP4136-208 - Universal // Non-Handed
