Select Brake Disc Face Type
Select Brake Disc Side
From $334.74

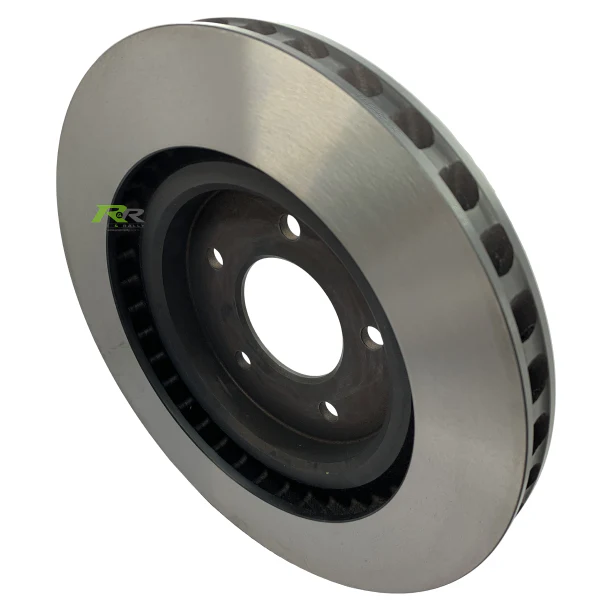

Ø285 x 26mm Ventilated Brake Disc with Integral Bell—
$334.74
The Story
- Front 15" Gravel Brake Disc for the Opel Adam R2
TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)
- 'A' Outside Diameter: 285mm
- 'B' Thickness: 26.0mm
- 'M' P.C.D.: 110.0mm
- Fixing Type:
- 5 Stud
- Ø12.20mm Stud Hole
- 'C' Spigot Diameter: 70.2mm
- 'D' Internal Flange Diameter: 151.00mm
- 'E' Eye Diameter: 196.00mm
- 'F' Mounting Flange Thickness: 6.0mm
- 'G' Mounting Offset: 23.70mm
- Max Pad Depth: D41
- Air Gap: 13.80mm
- Weight: 5.40kg [per disc]
- Face Types Available:
- P | Plain
INSTALLATION DRAWING
PART NUMBERS:
- CP6552-116P - Right Hand Side
- CP6552-117P - Left Hand Side
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Front 15" Gravel Brake Disc for the Opel Adam R2
TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)
- 'A' Outside Diameter: 285mm
- 'B' Thickness: 26.0mm
- 'M' P.C.D.: 110.0mm
- Fixing Type:
- 5 Stud
- Ø12.20mm Stud Hole
- 'C' Spigot Diameter: 70.2mm
- 'D' Internal Flange Diameter: 151.00mm
- 'E' Eye Diameter: 196.00mm
- 'F' Mounting Flange Thickness: 6.0mm
- 'G' Mounting Offset: 23.70mm
- Max Pad Depth: D41
- Air Gap: 13.80mm
- Weight: 5.40kg [per disc]
- Face Types Available:
- P | Plain
INSTALLATION DRAWING
PART NUMBERS:
- CP6552-116P - Right Hand Side
- CP6552-117P - Left Hand Side
