Select Brake Disc Face Type
Select Brake Disc Side
From $145.48
Original: $484.92

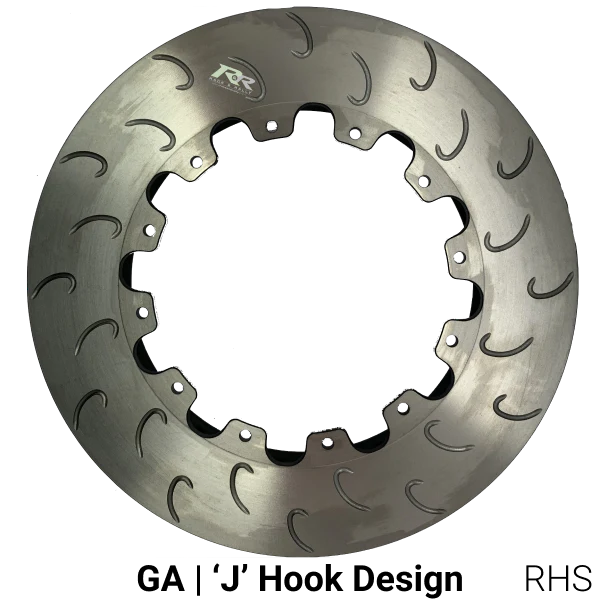

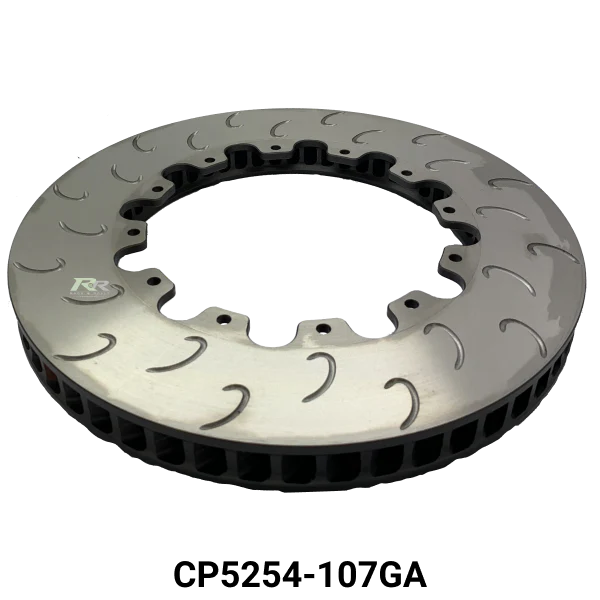

-70%Ø304 x 28mm Ventilated Brake Disc—
$484.92
$145.48The Story
Applications
- Ford Escort MK2 - 15" Front
TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)
- 'A' Outside Diameter: 304mm
- 'B' Thickness: 28.0mm
- 'M' P.C.D.: 177.8mm
- Fixing Type: Bolted
- 12 Bolts
- 'C' Eye Diameter: 203.2mm
- 'D' Inside Flange Diameter: 161mm
- 'H' Mounting Flange Thickness: 5.6mm
- Max Pad Depth: D50
-
Number of Vanes: 54
- Air Gap: 16.0mm
- Weight: 4.6 Kg [per disc]
- Face Types Available:
- GA | 'J' Hook Design
INSTALLATION DRAWING
PART NUMBERS
GA | 'J' Hook Design
- CP5254-106GA - RHS
- CP5254-107GA - LHS
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Applications
- Ford Escort MK2 - 15" Front
TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)
- 'A' Outside Diameter: 304mm
- 'B' Thickness: 28.0mm
- 'M' P.C.D.: 177.8mm
- Fixing Type: Bolted
- 12 Bolts
- 'C' Eye Diameter: 203.2mm
- 'D' Inside Flange Diameter: 161mm
- 'H' Mounting Flange Thickness: 5.6mm
- Max Pad Depth: D50
-
Number of Vanes: 54
- Air Gap: 16.0mm
- Weight: 4.6 Kg [per disc]
- Face Types Available:
- GA | 'J' Hook Design
INSTALLATION DRAWING
PART NUMBERS
GA | 'J' Hook Design
- CP5254-106GA - RHS
- CP5254-107GA - LHS
