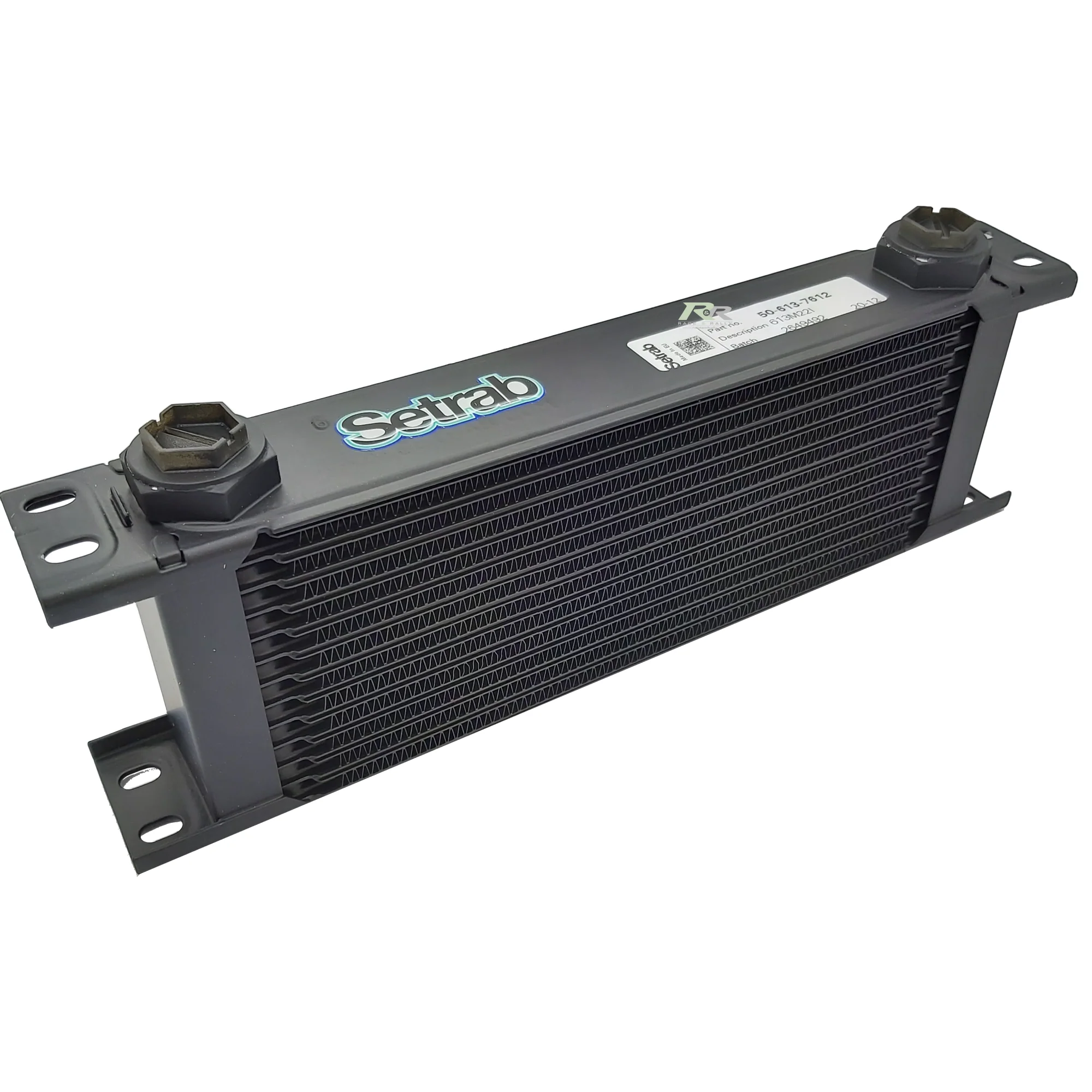

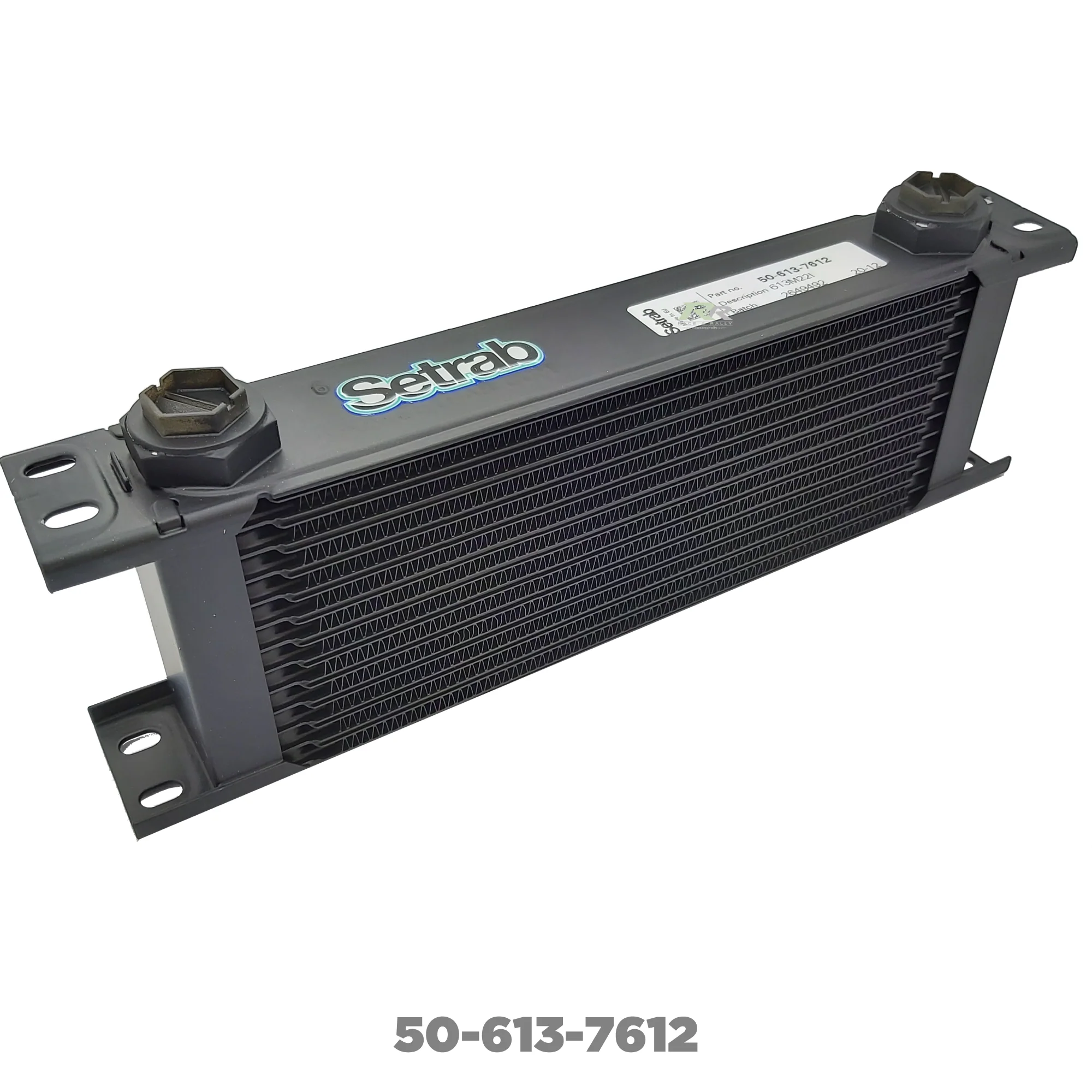

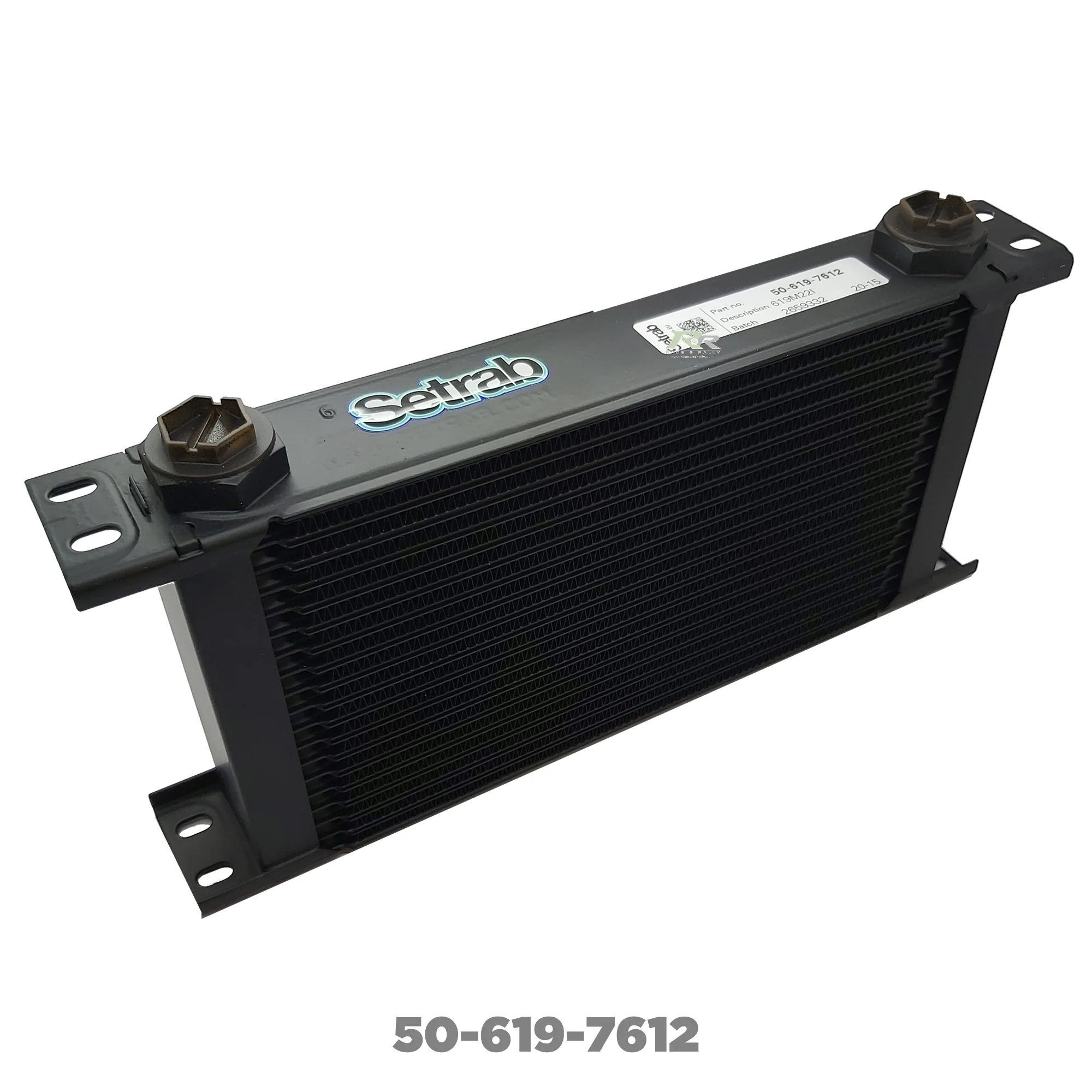

Proline Oil Cooler - Full Width (330mm)

Setrab products are designed for quality from the start. All materials are tested against agreed quality standards, all machinery and manufacturing processes are monitored for integrity and consistency, and every single cooler is pressure and leak tested in a helium-based process to ensure that we consistently deliver products conforming to our high standards. The ProLine STD Coolers offer a wide range of rugged and reliable oil coolers for all types of cooling on a vehicle, engine oil, transmission oil, clutch, brakes, differential, power steering...

DIMENSIONS

• 7 Rows
• Length (L): 330 x Height (H): 52 x Depth (D): 50
• 10 Rows
• Length (L): 330 x Height (H): 76 x Depth (D): 50
• 13 Rows
• Length (L): 330 x Height (H): 99 x Depth (D): 50
• 16 Rows
• Length (L): 330 x Height (H): 122 x Depth (D): 50
• 19 Rows
• Length (L): 330 x Height (H): 146 x Depth (D): 50
• 25 Rows
• Length (L): 330 x Height (H): 193 x Depth (D): 50
• 34 Rows
• Length (L): 330 x Height (H): 264 x Depth (D): 50
• 40 Rows
• Length (L): 330 x Height (H): 310 x Depth (D): 50
• 44 Rows
• Length (L): 330 x Height (H): 342 x Depth (D): 50
• 50 Rows
• Length (L): 330 x Height (H): 389 x Depth (D): 50

APPLICATIONS

• Engine Oil

• Transmission Oil
• Clutch
• Brakes
• Differential
• Power Steering

TECHNICAL SPECIFICATIONS

- INLET/OUTLET PORTS

Each cooler consists of two M22 Ports. Setrab adaptors are available to convert M22 Port to preferred JIC/UNF Size:

• -06 Adaptor: 22-09475-01
• -08 Adaptor: 22-09476-01
• -10 Adaptor: 22-09477-01
• -12 Adaptor: 22-09478-01

- WORKING PRESSURE

0-10 Bar(g) dynamic

The range in which the cooler is designed to operate (above atmospheric pressure). The word "dynamic" implies that the pressure can fluctuate between the limits.

- PRESSURE PULSATION ENDURANCE

200k pulsations, 0-10 bar(g), 2 Hz, 60°C oil temp

How many times the cooler can withstand pressurization between a lower and an upper limit. The Herz number indicates the frequency of pulsations per second.

- MAX PRESSURE

12 Bar(g)

The maximum operating pressure.

- BURST PRESSURE

37 Bar(g)

The maximum pressure the cooler can withstand before bursting.

- PRESSURE TEST

10 Bar(g)

The pressure the cooler is exposed to after brazing to ensure brazing joint integrity.

- LEAK TEST

4 Bar(g)

The pressure level the cooler is tested at for leaks after the pressure test.

- WORKING TEMPERATURE

-40°C to 150°C

The temperature range the cooler is designed to operate within. Operating temperatures outside of the defined range will negatively affect the strength and durability of the cooler.

- CORROSION ENDURANCE

20 days according to SWAAT G85-94 A3

How long the cooler can withstand a salt spray test before starting to leak. The test simulates the expected lifetime exposure of a typical vehicle to a mixture of water and road salts.

- INNER CLEANLINESS

ISO 4406 16/14

The maximum amount of particles the cooler is expected to contain.

- GENERAL DIMENSIONAL TOLERANCE

ISO 2768-v

The standard to which the cooler conforms regarding dimensions specified on the technical drawing.

- MATERIAL

Aluminum Alloys

The material the cooler is made of.

- MAX CONNECTION TIGHTENING TORQUE

40Nm

The maximum torque allowed when tightening the connection on the cooler.
