Remote filter Head - No Temp Take Off
HomeStore

Remote filter Head - No Temp Take Off

Remote filter Head - No Temp Take Off

Select Flow Direction
From $20.25

Original: $67.51

-70%
Remote filter Head - No Temp Take Off—

$67.51

$20.25

The Story

Takes filter with 3/4UNF thread. A compact design which will require a spacer if a filter larger than 80mm diameter is mounted against a flat surface. Provision can be made to take a capillary type temperature gauge sender or pressure gauge tapping. Available in either flow direction. Has 1/2BSP female ports with a recess to take SR1/2 sealing ring or BS13/16 bonded seal.

Technical Specifications:

  • Left to Right oil flow
    • Left-hand side: Oil Inlet
    • Right-hand side: Oil Outlet
  • M22 female ports
  • 3/4 UNF oil filter thread
  • Material: Cast aluminium
  • Temperature sender facility: No take-off
Remote filter Head - No Temp Take Off - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

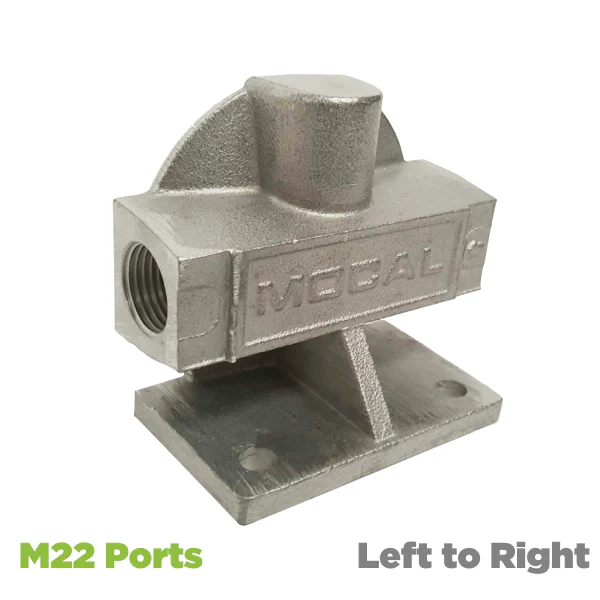

Remote filter Head - No Temp Take Off - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Takes filter with 3/4UNF thread. A compact design which will require a spacer if a filter larger than 80mm diameter is mounted against a flat surface. Provision can be made to take a capillary type temperature gauge sender or pressure gauge tapping. Available in either flow direction. Has 1/2BSP female ports with a recess to take SR1/2 sealing ring or BS13/16 bonded seal.

Technical Specifications:

  • Left to Right oil flow
    • Left-hand side: Oil Inlet
    • Right-hand side: Oil Outlet
  • M22 female ports
  • 3/4 UNF oil filter thread
  • Material: Cast aluminium
  • Temperature sender facility: No take-off
