Twin HI 044 Fuel Injection Pump & Sytec Filter Complete Manifold Kit

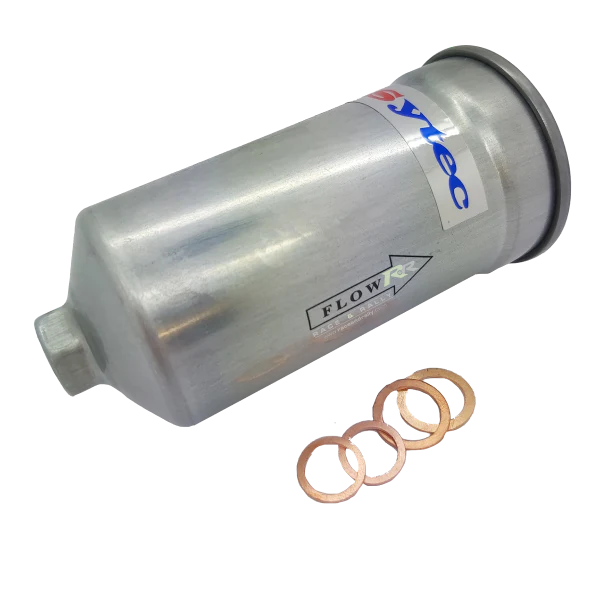

Twin HI Fuel Injection Pumps & Filter Mounting Unit & Manifold Kit. Complete with 2x HI 044 fuel pumps and Sytec canister filter.
Compact and lightweight injection pump and filter mount complete with all fittings.

Manifold Specifications

• CNC machined black anodised alloy brackets
• Internal O-rings to support the pump and filter - reduces vibration resulting in longer life
• Alloy mounting base
• CNC machined billet alloy banjo manifold connects pump and filter
• Supplied with all required banjo bolts, adaptors, fittings, dowdy washers.
• Banjo manifold has take off facility both ends
• Black anodised finish
• Complete with bullet fuel pre-filter
• -08 JIC/UNF Inlet
• -06 JIC/UNF Outlet
• Also compatible with Bosch 044 (0580254044) fuel pump

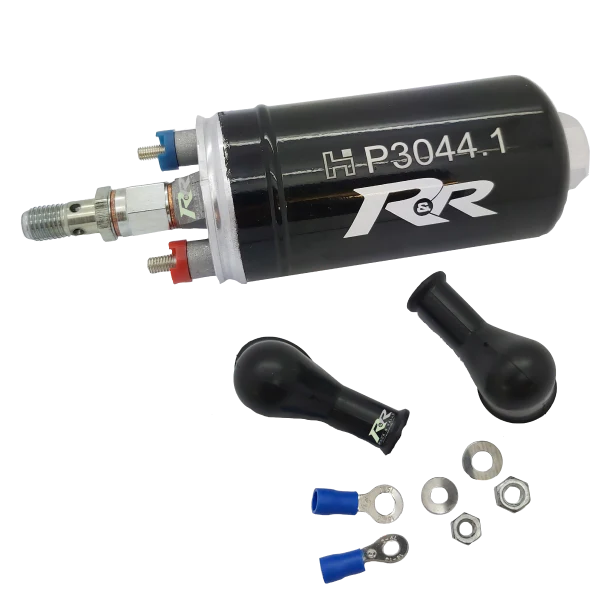

HI Pumps 044 Specifications

• Female Outlet: M12x1.5 Banjo - One way valve stub
• Female Intet: M18x1.5
• Pump: P3044.1
• Voltage: 12V DC
• Max Flow rate: 378 Ltr/Hr
• Flow rate @ 3 Bar (44psi): 318 Ltr/Hr
• Flow rate @ 5 Bar (73psi): 258 Ltr/Hr
• Max Pressure: 10.4 BAR
• Location To Tank: 0.6 Metres
• Length: 194mm
• Diameter: 60mm
• Weight: 1.03 Kg

Assembly Instructions:

• Remove M12x1.5 Banjo end, but keep extension adaptor fitted to pump
• This will assemble the T-Piece manifold with 3x M12x1.5 Banjo bolts
• Insert M18x1.5 to M14x1.5 Metric adaptors (included with alloy washers) into Pump inlets to allow M14 banjo bolts to secure the 2-piece manifold to the pumps.
