CP6840 - 4 Piston Radi-CAL WRC Caliper - Forged

Typical Applications:

• WRC
• R4T
• R5
• S2000
• Ford Fiesta R5 MKI EVO
• MK2 Escort R&R Ultimate Brake Kit

Features:

• Radial mount, 180 x 42mm centres
• Available with either a "Push-In" or an "M10x1.00" threaded inlet
• Forged monoblock Aluminium alloy body
• Suits Ø355mm or Ø300mm x 32mm Iron disc
• Internally ported, no external bridge pipes.
• Ducted air cooling features
• Stainless Steel pistons

Part Numbers:

Calipers with "Push-In" Inlet:

• RH: CP6840-4S4L
• LH: CP6840-5S4L

Calipers with "M10x1.0" Threaded Inlet:

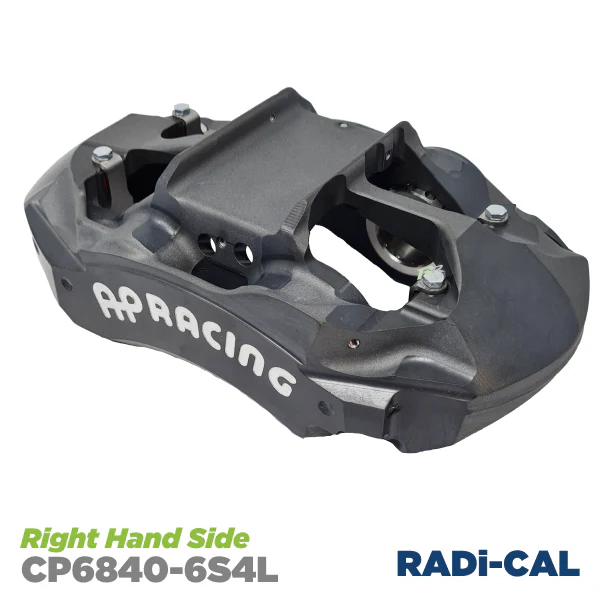

• RH: CP6840-6S4L
• LH: CP6840-7S4L

---



Technical Specifications:

• Piston Size:
• 2x Ø34.9mm
• 2x Ø41.3mm
• Piston Area:
• 45.9
• Weight (no pads):
• 2.16 KG
• Hydraulic Threads:
• M10 x 1.00
• Mounting Details:
• Radial Mounting
• 180mm Centres
• 42.0mm Offsets
• 10.175mm Hole
• 57.5mm 'PL' Dimension

Spare Parts:

• Pistons:
• Ø34.9 - CP6820-106
• Ø41.3 - CP6820-107
• Seal Repair Kit:
• CP8518-GK
• Wear plates:
• 4x CP6820-113
• Beam:
• 1x CP6820-109
• Bleed Screw Kit:
• CP3880-1

---

Brake Pad Part Numbers:

Gravel:

• CP6820D46

Tarmac:

• CP6820D48
• Ferodo:
• FRP3140
• PFC:
• 7770
• CL Brakes:
• 5036W50T16
