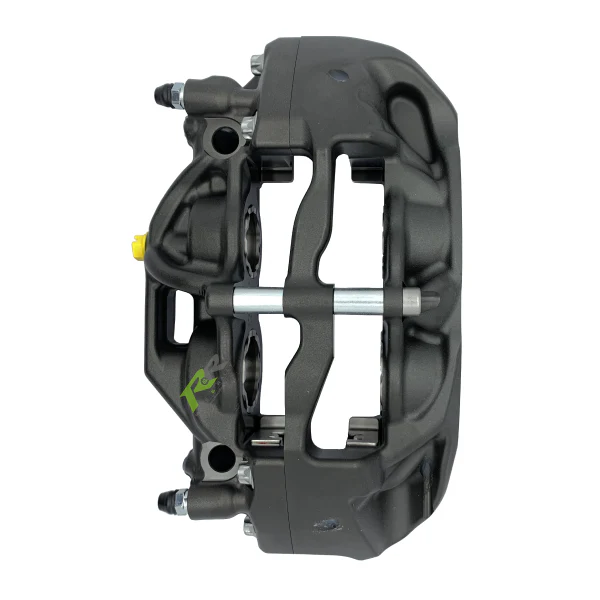

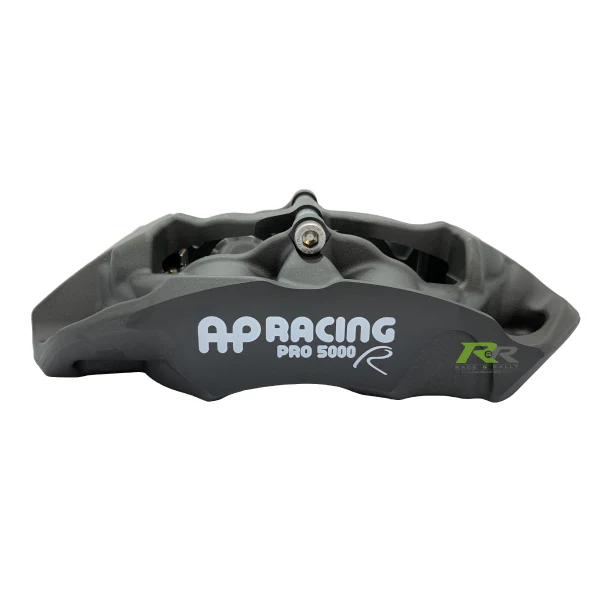

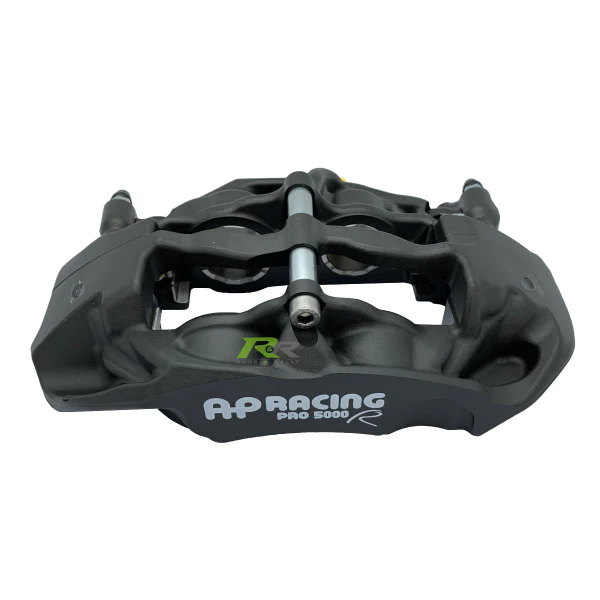

CP9440 - PRO 5000 R 4 Piston Radi-CAL™️ Caliper

Front - 47.12cm² Piston Area

Typical Applications

• Budget, general competition use
• Single make race series

Features

• Benefits from a radical asymmetric design concept
• Superior dynamic performance
• Increased stiffness
• Forged, two piece aluminium Aluminium alloy body
• Radial mount, 152.0mm x 44.0mm centres
• Suits Ø330.0mm or 315.0mm x 28mm thick disc
• Stainless steel pistons
• High temperature seals
• 4lb Anti-knockback springs fitted
• Stainless Steel wear plates
• Smaller bore version for rear applications available - CP9441 family

Technical Specification - CP9440 & CP9441 Calipers

Please zoom in to view.

Brake Pad Family - CP3215D50

CP9440 - Installation Drawing
