MK1/MK2 Escort Millington Diamond Bell-housing - Ford Gearbox

!!NEWLY DESIGNED!!

Millington Diamond specific bell housing, for use with block mounted starter motors with the small diameter flywheels as used on Millington Diamond engines.

Compatible Engines:

• Millington Diamond Series 1
• Millington Diamond Series 2

Compatible Gearboxes:

• Ford Type 9
• Ford Rocket Type

Compatible Slave Cylinders:

• AP Racing:
• CP6859-54

Technical Specifications:

• Allows extra clearance over the RS2000 type bell housing
• 178mm depth between both mounting faces

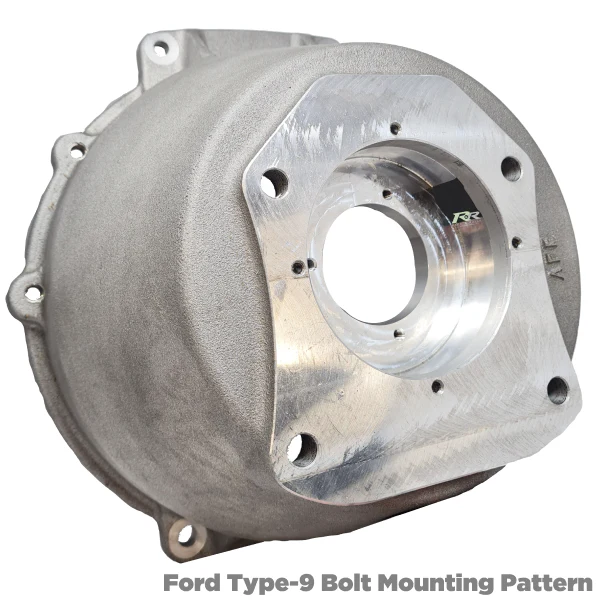

• Ideal for use with sequential gearboxes with Ford Type-9/Rocket bolt pattern
• Thicker casting wall along with extra webs added to the top and bottom flanges give optimum strength
• Engine mounting bolt holes helicoiled (M10x1.5)
• Gearbox mounting bolt holes: 12mm clearance for cap head bolts
• Slave cylinder mounting boss: 35mm
• Can be machined down to suit the clutch height
